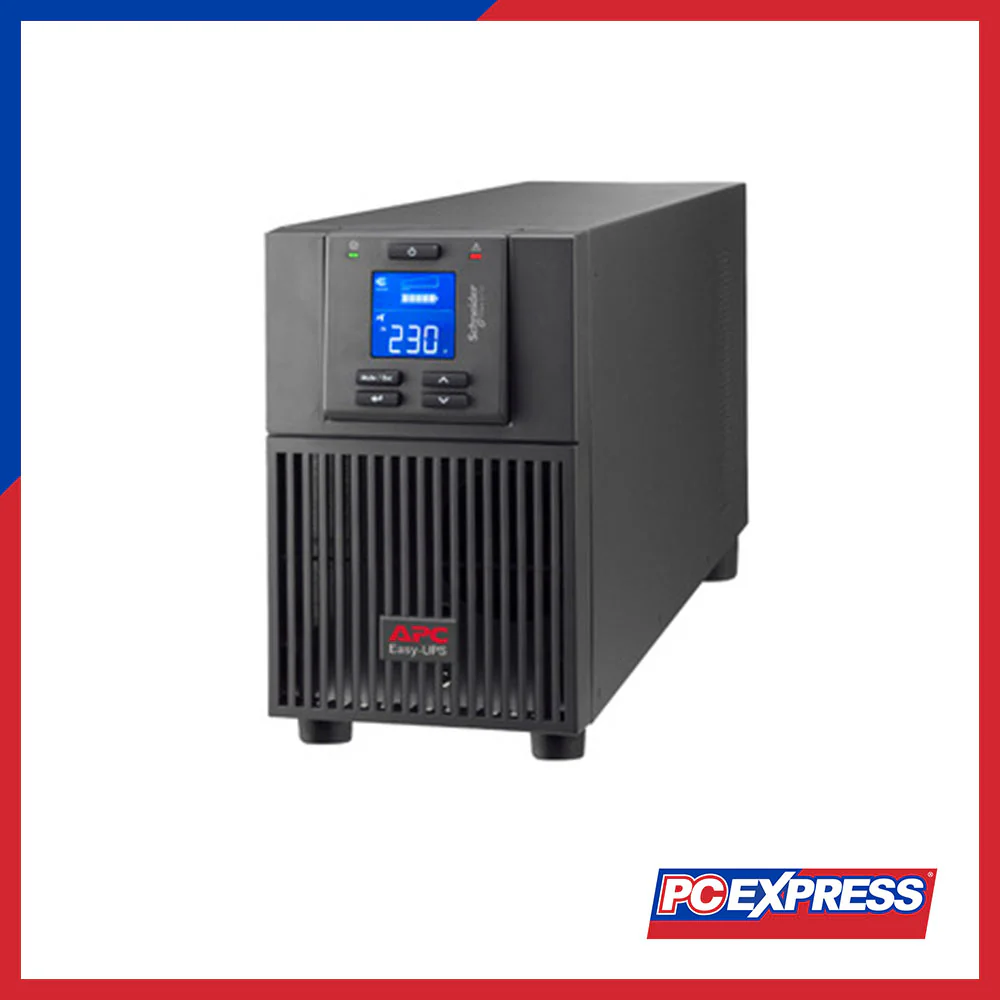

APC (SRV2KI-E) Easy UPS On-Line, 2000VA/1800W, Tower, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD
SPECIFICATION
|
Main |
|
|
Main Input Voltage |
230 V |
|
Other Input Voltage |
220 V, 240 V |
|
Main Output Voltage |
230 V |
|
Other Output Voltage |
220 V, 240 V |
|
Rated Power |
1800 W, 2000 VA |
|
Input Connection Type |
IEC 60320 C14 |
|
Output Connection Type |
4 x IEC 60320 C13 |
|
Cable Length |
1.5 m |
|
Number of Cables |
1 |
|
Provided Equipment |
1 IEC 60320 C13 to Schuko power cable, 1 IEC 60320 C13 to C14 power cable, 1 USB cable, 1 RS-232 configuration cable, User manual |
|
Range of Product |
Easy UPS On-Line |
|
Batteries & Runtime |
|
|
Battery Type |
Lead-acid battery |
|
Battery Voltage |
48 V |
|
Battery Recharge Time |
4 hours |
|
Battery Life |
3–5 years |
|
Replacement Battery |
APCRBCV204 |
|
Battery Charger Power |
70 W rated |
|
Max Runtime |
3 minutes |
|
General |
|
|
Colour |
Black (RAL 7010) |
|
Dimensions (H x W x D) |
23.8 cm x 14.5 cm x 40 cm |
|
Net Weight |
17.0 kg |
|
Mounting Location |
Front |
|
Mounting Mode |
Not rack-mountable |
|
USB Compatible |
Yes |
|
Mounting Position |
Vertical |
|
Input |
|
|
Input Voltage Limits |
110–285 V (40% load), 180–285 V (full load) |
|
Network Frequency |
40–70 Hz (auto sensing) |
|
Output |
|
|
Max Configurable Power |
1800 W, 2000 VA |
|
Output Frequency |
50/60 Hz ± 3 Hz (sync to mains) |
|
Harmonic Distortion |
3% |
|
UPS Type |
Double conversion online |
|
Wave Type |
Sine wave |
|
Efficiency |
88% (full load) |
|
Additional Information |
Configurable for 220/230/240 V nominal output voltage |
|
Bypass Type |
Internal bypass (automatic and manual) |
|
Crest Factor |
3:1 |
|
Conformance |
|
|
Certifications |
UKCA, TISI |
|
Standards |
EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
|
Environmental |
|
|
Operating Temperature |
0–40 °C |
|
Relative Humidity |
0–95% (non-condensing) |
|
Operating Altitude |
0–3000 m |
|
Storage Temperature |
-20–50 °C |
|
Storage Humidity |
0–95% (non-condensing) |
|
Storage Altitude |
0–15000 m |
|
Acoustic Level |
50 dBA |
|
Heat Dissipation |
759 Btu/h |
|
IP Degree of Protection |
IP20 |
|
Communications & Management |
|
|
Alarm |
Distinctive low battery alarm, overload continuous tone alarm |
|
Control Panel |
Multifunction LCD status and control console |
|
Free Slots |
1 |
|
Surge Protection |
|
|
Surge Energy Rate |
945 J |
|
Packing Units |
|
|
Package Type |
PCE |
|
Package Dimensions (H x W x L) |
35.5 cm x 52.5 cm x 23.5 cm |
|
Package Weight |
18.9 kg |
