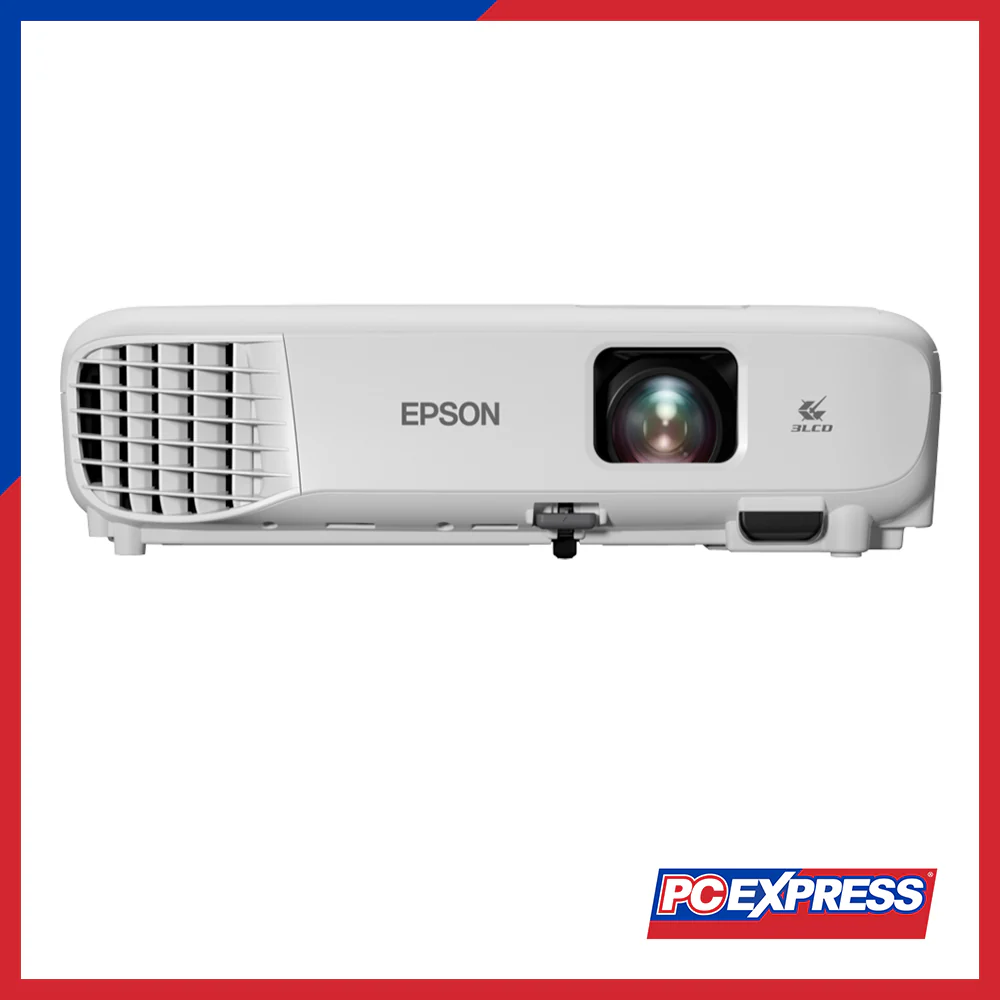

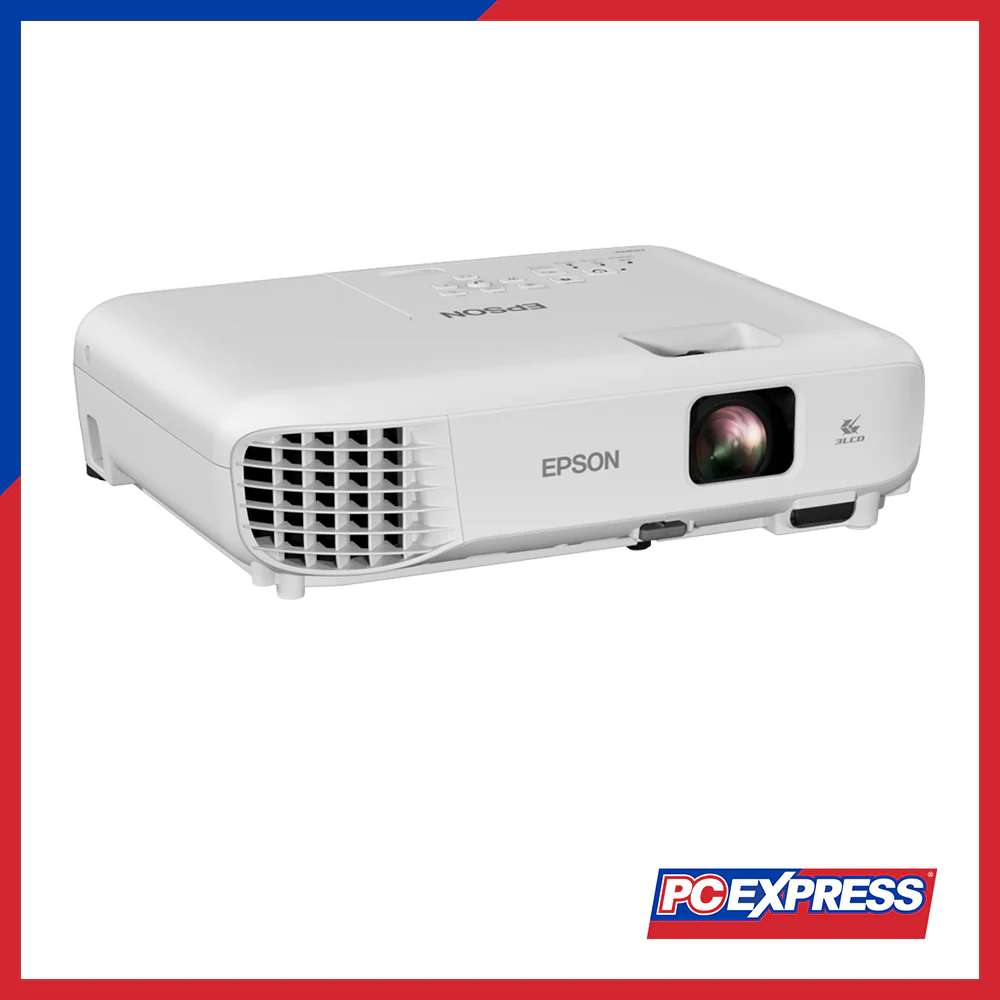

EPSON EB-E12 XGA 3LCD Projector
XGA Resolution
Displaying clear and crisp visuals thanks to its XGA resolution, the Epson EB-E12's high resolution is able to support vivid display on large screen sizes.
Easy Maintenance and Longer Lamp Life
A long lamp life reduces maintenance and costs. The lamp will last up to 12,000 hours in ECO mode. Cut down on the frequency of lamp replacements, saving you time and money, and lowering the total cost of ownership.
Various Interfaces
Epson business projectors support a wide range of connectivity options. Works with various HDMI capable equipments.
Flexible Display Size
Why settle for smaller screen when you can have more 120" and even up to 300"? EB-E12 supports a variety of aspect ratio and display size up to 300" diagonal.
Split Screen Capability
Use the projector to show 2 different images from 2 different devices at the same time using the split screen function. Example, you can now show your presentation on one side while seeing the video on another side.
SPECIFICATION
|
Projection Technology |
RGB liquid crystal shutter projection system (3LCD) |
|
Brightness |
|
|
White Light Output (Normal/Eco) |
3,600 lm / 2,200 lm |
|
Colour Light Output |
3,600 lm |
|
Light Output (Center) |
3,700 lm |
|
Connectivity |
|
|
Network |
N/A |
|
Analog Input - D-Sub 15pin |
N/A |
|
Analog Input - RCA |
N/A |
|
Digital Input - HDMI Type A |
2 (HDCP 1.4) |
|
Analog Output - D-Sub 15pin |
N/A |
|
Audio Input - Stereo Mini |
N/A |
|
Audio Output - Stereo Mini |
N/A |
|
Control I/O - RS-232C |
N/A |
|
USB Input |
USB Type B: 1 (For Firmware Update, Copy OSD Settings) |
|
Contrast Ratio |
15,000:1 |
|
Screen Size (Projected Distance) |
Zoom Wide: 30”–350” [0.87–10.34 m] / Zoom Tele: 15”–175” [0.87–10.34 m] |
|
Geometric Correction |
Vertical/Horizontal Keystone: ±30° / ±30° |
|
Operating Temperature |
Low Altitude: 5–40°C (41–104°F); High Altitude: 5–35°C (41–95°F), 20–80% RH |
|
Operating Altitude |
Over 1,500m (4,921 ft) with High Altitude Mode: 0–3,048m (0–10,000 ft) |
|
Start-Up Period |
Less than 7 seconds (Epson Logo); Warm-up: 30 seconds |
|
Cool Down Period |
Instant Off |
|
Internal Speaker(s) |
Monaural 2W x 1 |
|
Weight |
Approx. 2.4 kg |
|
Air Filter Maintenance Cycle |
6,000 hours (Normal) / 12,000 hours (Eco) |
|
Fan Noise (Normal / Eco) |
37 dB / 28 dB |
|
Power Consumption (220–240V) |
Normal: 332 W / Extended: 231 W; Standby (Eco): 0.3 W |
|
Direct Power On / Off |
Yes |
|
Dimension (W x D x H) |
302 x 234 x 77 mm |
|
Power Supply Voltage |
100 – 240 V AC ±10%, 50/60 Hz |
|
LCD Specifications |
Size: 0.55” (C2 Fine), 786,432 dots (1024×768) ×3, XGA, 4:3, Cross stripe |
|
Light Source |
210 W UHE Lamp; Life: 6,000h (Normal) / 12,000h (Eco) |
|
Projection Lens |
No Optical Zoom / Manual Focus; F: 1.44; FL: 16.7 mm; Zoom: 1.0–2.0 (Digital); Throw: 1.44–2.88 |
XGA Resolution
Displaying clear and crisp visuals thanks to its XGA resolution, the Epson EB-E12's high resolution is able to support vivid display on large screen sizes.
Easy Maintenance and Longer Lamp Life
A long lamp life reduces maintenance and costs. The lamp will last up to 12,000 hours in ECO mode. Cut down on the frequency of lamp replacements, saving you time and money, and lowering the total cost of ownership.
Various Interfaces
Epson business projectors support a wide range of connectivity options. Works with various HDMI capable equipments.
Flexible Display Size
Why settle for smaller screen when you can have more 120" and even up to 300"? EB-E12 supports a variety of aspect ratio and display size up to 300" diagonal.
Split Screen Capability
Use the projector to show 2 different images from 2 different devices at the same time using the split screen function. Example, you can now show your presentation on one side while seeing the video on another side.
SPECIFICATION
|
Projection Technology |
RGB liquid crystal shutter projection system (3LCD) |
|
Brightness |
|
|
White Light Output (Normal/Eco) |
3,600 lm / 2,200 lm |
|
Colour Light Output |
3,600 lm |
|
Light Output (Center) |
3,700 lm |
|
Connectivity |
|
|
Network |
N/A |
|
Analog Input - D-Sub 15pin |
N/A |
|
Analog Input - RCA |
N/A |
|
Digital Input - HDMI Type A |
2 (HDCP 1.4) |
|
Analog Output - D-Sub 15pin |
N/A |
|
Audio Input - Stereo Mini |
N/A |
|
Audio Output - Stereo Mini |
N/A |
|
Control I/O - RS-232C |
N/A |
|
USB Input |
USB Type B: 1 (For Firmware Update, Copy OSD Settings) |
|
Contrast Ratio |
15,000:1 |
|
Screen Size (Projected Distance) |
Zoom Wide: 30”–350” [0.87–10.34 m] / Zoom Tele: 15”–175” [0.87–10.34 m] |
|
Geometric Correction |
Vertical/Horizontal Keystone: ±30° / ±30° |
|
Operating Temperature |
Low Altitude: 5–40°C (41–104°F); High Altitude: 5–35°C (41–95°F), 20–80% RH |
|
Operating Altitude |
Over 1,500m (4,921 ft) with High Altitude Mode: 0–3,048m (0–10,000 ft) |
|
Start-Up Period |
Less than 7 seconds (Epson Logo); Warm-up: 30 seconds |
|
Cool Down Period |
Instant Off |
|
Internal Speaker(s) |
Monaural 2W x 1 |
|
Weight |
Approx. 2.4 kg |
|
Air Filter Maintenance Cycle |
6,000 hours (Normal) / 12,000 hours (Eco) |
|
Fan Noise (Normal / Eco) |
37 dB / 28 dB |
|
Power Consumption (220–240V) |
Normal: 332 W / Extended: 231 W; Standby (Eco): 0.3 W |
|
Direct Power On / Off |
Yes |
|
Dimension (W x D x H) |
302 x 234 x 77 mm |
|
Power Supply Voltage |
100 – 240 V AC ±10%, 50/60 Hz |
|
LCD Specifications |
Size: 0.55” (C2 Fine), 786,432 dots (1024×768) ×3, XGA, 4:3, Cross stripe |
|
Light Source |
210 W UHE Lamp; Life: 6,000h (Normal) / 12,000h (Eco) |
|
Projection Lens |
No Optical Zoom / Manual Focus; F: 1.44; FL: 16.7 mm; Zoom: 1.0–2.0 (Digital); Throw: 1.44–2.88 |
Original: $365.79
-70%$365.79
$109.74Description
