Marketing Name

GeForce RTX™ 5060 Ti 8G VENTUS 2X OC PLUS

Model Name

G506T-8V2CP

Graphics Processing Unit

NVIDIA® GeForce RTX™ 5060 Ti

Interface

PCI Express® Gen 5 x16 (uses x8)

Core Clocks

Extreme Performance: 2617 MHz (MSI Center)
Boost: 2602 MHz

CUDA® Cores

4608 Units

Memory Speed

28 Gbps

Memory

8GB GDDR7

Memory Bus

128-bit

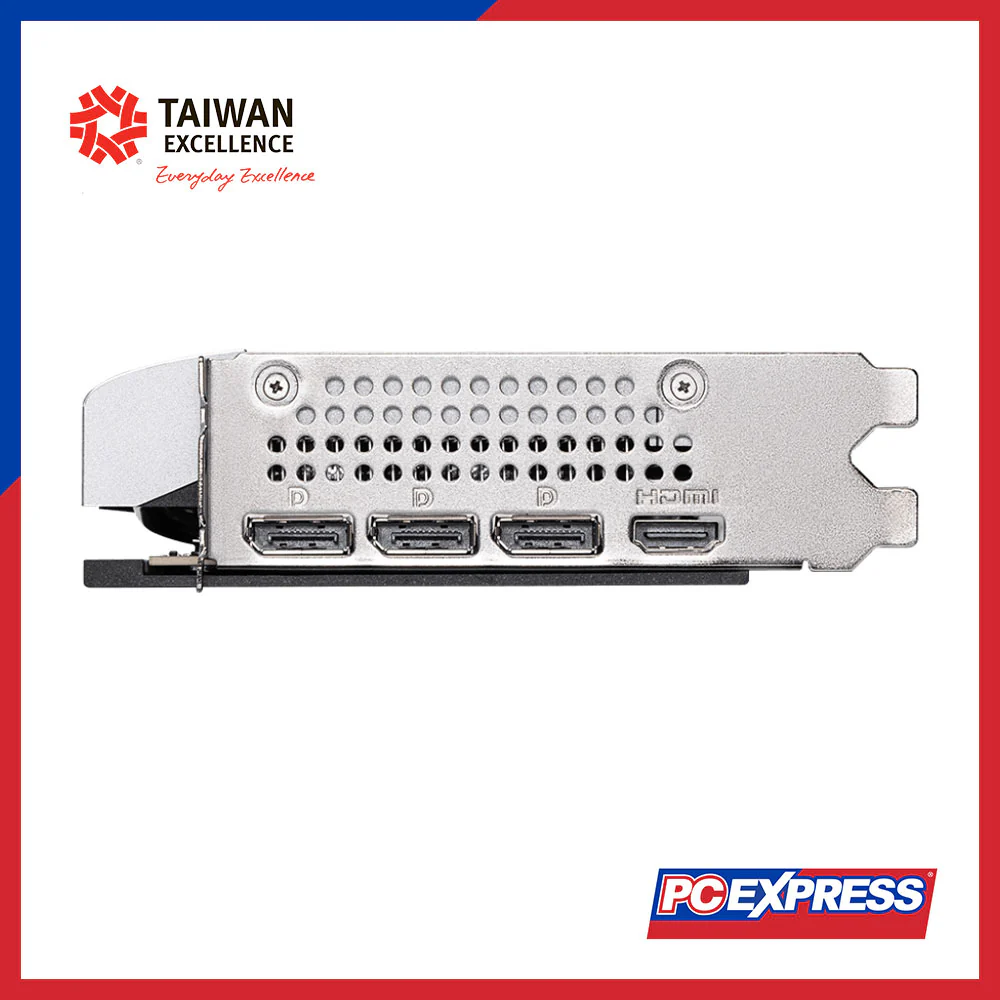

Output

DisplayPort x 3 (v2.1b)
HDMI™ x 1 (HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

HDCP Support

Yes

Power Consumption

180 W

Power Connectors

8-pin ×1

Recommended PSU

600 W

Card Dimension (mm)

227 × 127 × 41 mm

Weight (Card / Package)

573 g / 834 g

DirectX Version Support

12 Ultimate

OpenGL Version Support

4.6

Maximum Displays

4

G-SYNC® Technology

Yes

Digital Maximum Resolution

7680 × 4320
