Product Name

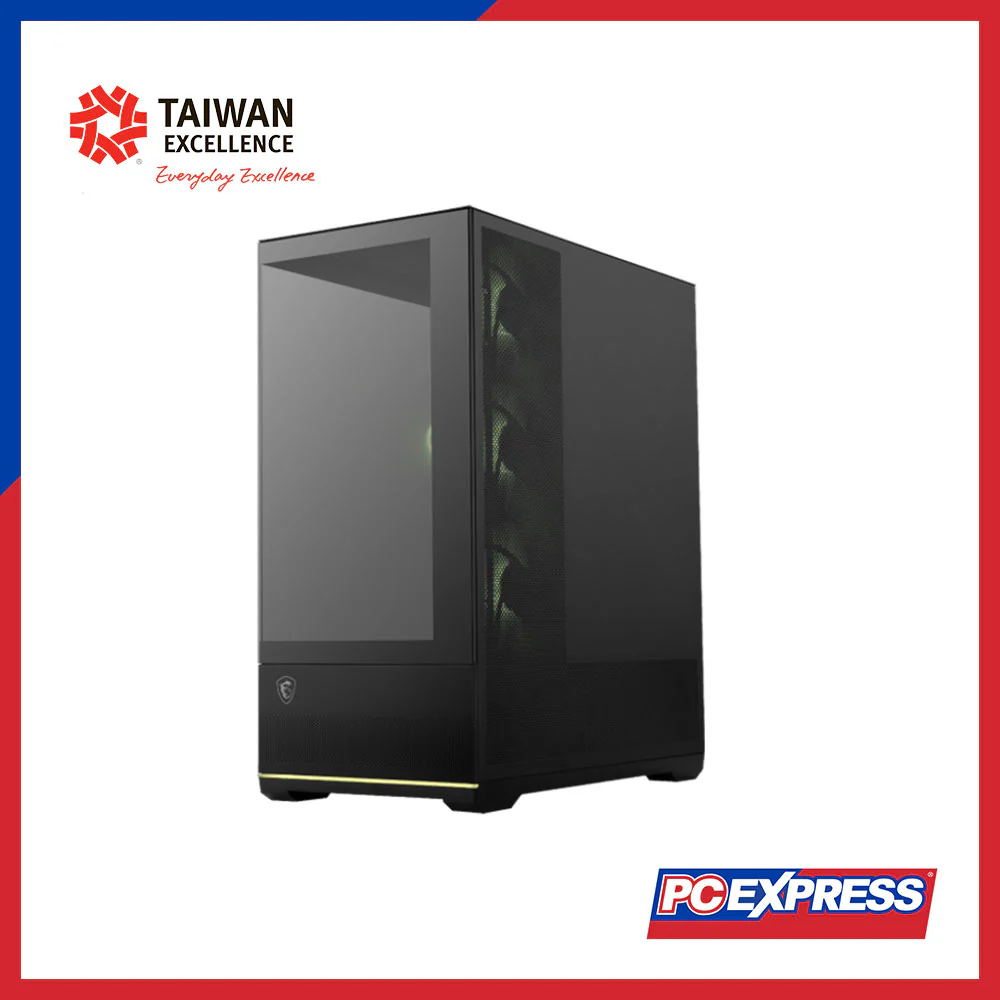

MAG PANO 110R PZ / BLACK

Case Form Factor

Mid‑Tower

Motherboard Form Factor Support

Regular: ATX / Micro‑ATX / Mini‑ITX
Back‑connect: ATX / Micro‑ATX

I/O Ports

1 × USB 20 Gbps (Type‑C)
2 × USB 5 Gbps (Type‑A)
1 × Audio‑Out / Mic‑in
1 × LED Button
1 × Power Button

Drive Mount Support

2 × 2.5″
2 × 3.5″
2 × 2.5″/3.5″ combo

Expansion Slots

7

Maximum GPU Length

400 mm / 15.75 in

Maximum CPU Cooler Height

160 mm / 6.30 in

Power Supply Support

ATX

Maximum PSU Length

200 mm / 7.87 in

Fan Size Support

Top: 3 × 120 mm or 2 × 140 mm
Rear: 1 × 120 mm
Side: 3 × 120 mm or 2 × 140 mm
Bottom: 3 × 120 mm (above shroud)

Pre‑installed Fan Size

Side: 3 × 120 mm
Rear: 1 × 120 mm

Pre‑installed Fan Type

Side: 3 × ARGB (reverse‑blade)
Rear: 1 × ARGB

Radiator Size Support

Top: 120/140/240/280/360 mm
Rear: 120 mm

Dimensions (D × W × H)

420 × 225 × 485 mm / 16.54 × 8.86 × 19.09 inches
