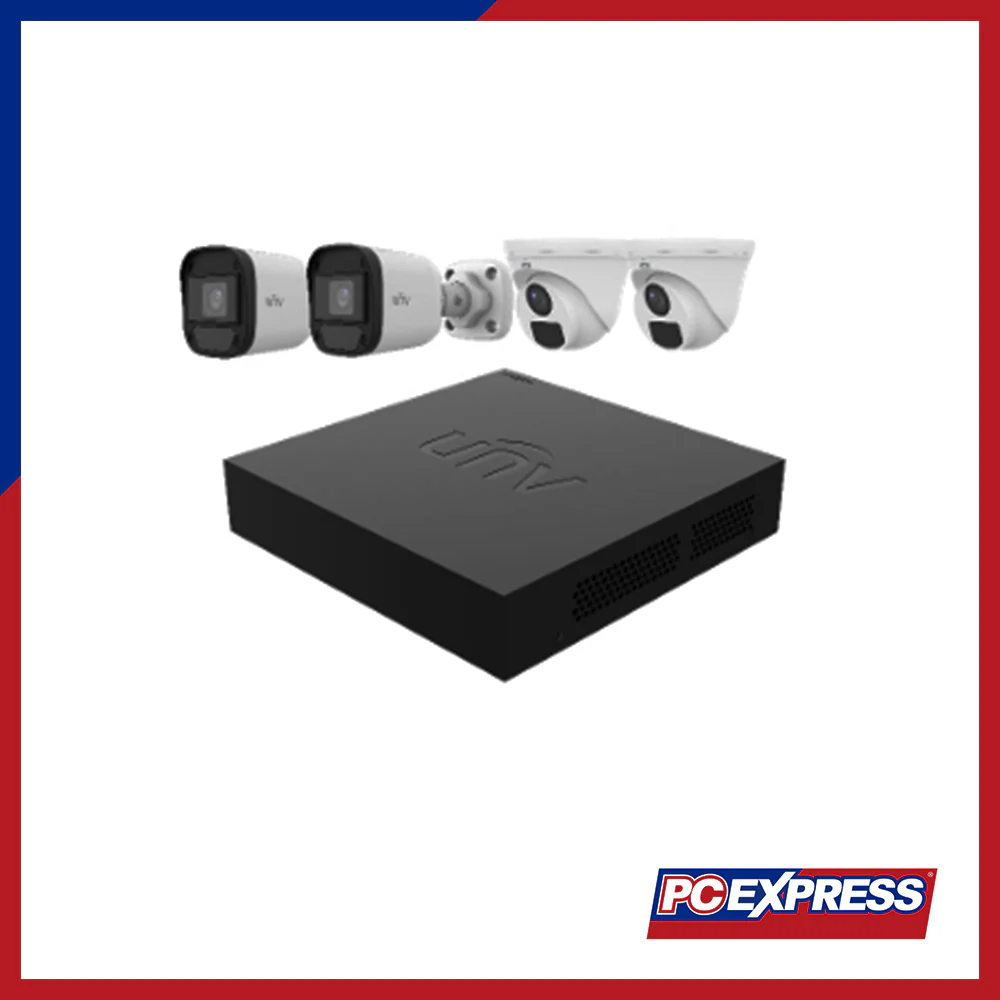

UNIVIEW XVR301-04F 4-Chanel Surveillance Analog Kit
SPECIFICATION
|
IP Video Input |
2-ch (all models) |
|
Analog Video Input |
4-ch, BNC |
|
Max IP Video Input |
6-ch |
|
Supported Analog Camera Types |
AHD/TVI/CVI: 1080P@30fps, 720P@30fps; CVBS input supported |
|
HDMI Output |
Up to 1920 × 1080 @ 60 Hz |
|
VGA Output |
Up to 1920 × 1080 @ 60 Hz |
|
Live View Display |
1/4/6/8/9 |
|
Recording Resolution |
1080P Lite / 720P / D1 |
|
Recording Frame Rate |
1080P Lite@25fps, 720P@30fps |
|
Audio Sample Rate |
8 kHz, 16-bit per channel |
|
Audio Bit Rate |
64 Kbps per channel |
|
Decoding Capability |
4x 1080P Lite@25, 4x 720P@30 (Analog); 1x 6MP@20, 2x 1080P@30 (IP) |
|
Two-way Audio |
N/A |
|
Analog Snapshot |
4-ch /snapshot up to 704×576; schedule snapshot not supported |
|
Incoming Bandwidth |
24Mbps (up to 32Mbps /after analog conversion) |
|
Outgoing Bandwidth |
48Mbps |
|
Remote Users |
128 |
|
Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP |
|
Browser Compatibility |
IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
|
Analog Smart Features (UMD) |
4-ch |
|
VCA Search |
Behavior Search |
|
General Alarm |
Motion |
|
Alert Alarms |
IP Conflict, Network Disconnected, Disk Abnormal/Offline/Full, Illegal Access, Recording/Snapshot Abnormal |
|
GUI Languages |
20 languages (English, Spanish, French, Russian, Arabic, etc.) |
|
SATA |
1 SATA interface |
|
HDD Capacity |
Up to 6 TB |
|
Network Interface |
1 x RJ45 10M/100M Ethernet |
|
USB |
2 × USB 2.0 (rear panel) |
|
Power Supply |
DC 12V/1.5A |
|
Operating Temperature |
–10℃ to 55℃ (14℉ to 131℉) |
|
Operating Humidity |
≤ 90% RH (non-condensing) |
|
Power Consumption (No HDD) |
≤10W |
|
Weight (Without HDD) |
≤0.6 kg / ≤0.6 kg / ≤0.85 kg |
|
Dimensions (W × D × H) |
190 × 202 × 42 mm / 190 × 202 × 42 mm / 253 × 212 × 42 mm |
|
Certification |
CE, FCC, UL, RoHS, WEEE |
|
CE Standards |
EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
|
FCC Standard |
Part 15 Subpart B |
